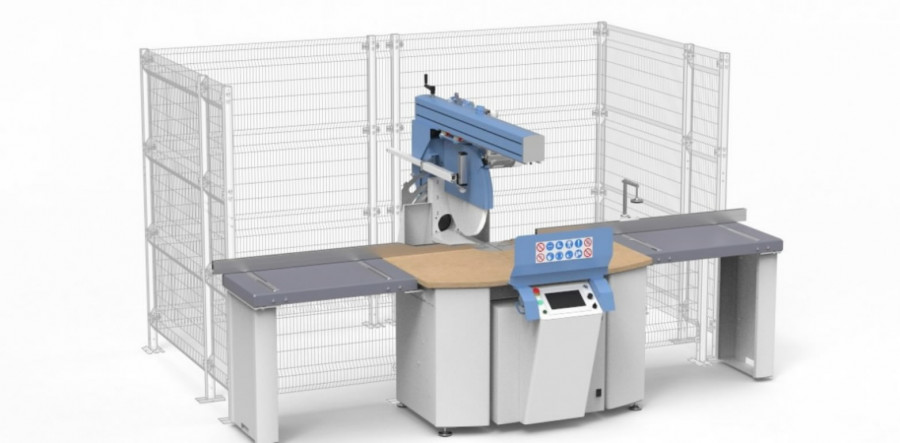

Motor 400/3/50 Hp.7,5 (kW 5,5)
Total weight kg.900
Complete with:
TCT blade Ų 550 mm F=30
Blade speed 2800 Rpm
Cutting speed mt./min. 80
Horizontal axis – Rotation +30° +150°
Vertical axis – Beveling +30° +120°
Automatic rotation and beveling electronically controlled
N°1 working table of mt.1, rollers Ų 90 mm. right from the blade
N°1 working table of mt.1, rollers Ų 90 mm. left from the blade
N°2 vertical pneumatic clamps
N°3 dust extraction outlet Ų 120mm.
Set-up for coupling to "Electronic Stop"
Cutting capacity:
Cutting capacity at 90°: 510mm.
Cutting capacity at 120° - rotation: 435mm.
Cutting capacity at 45° - rotation: 350mm.
Cutting capacity at 30° - rotation: 255mm.
Cutting height at 90°: 210mm.
Cutting height at 60° - beveling: 165mm. for 90° angle in rotation
Cutting height at 45° - beveling: 130mm. for 90° angle in rotation
Cutting height at 30° - beveling: 80mm. for 90° angle in rotation
The automation logic is based on BECKHOFF’s TwinCAT software.
The software features a straightforward and intuitive interface based on a “touch screen” monitor to program and configure the machine and it is also able to directly import files in .BTL format (version 10.4)
(Warning: only the PROCESSKEYs supported by the machine will be imported and managed).
The machine control optimizes processing to reduce waste and improve efficiency.
The machine is equipped with a 10.1-inch BECKHOFF PC Panel and a 1024x600 touch screen.
The PC Panel is approved for temperatures ranging from 0° to 55°C, the front panel has an IP54 protection class and the rear box an IP20 protection class.
The Ethernet dual interface guarantees integration with a local network (LAN) via an RJ-45 cable.
