Connection 230 V / 1 Ph ~50 Hz
Driving motor spindle 1,1 kW
Spindle taper MT 3
Tool holder seat height max. 14 mm
Centre height 125 mm
Centre width 550 mm
Turning diameter (max.) 250 mm
Bed width 135 mm
Spindle speeds 150 - 2,500 min-1
Travel top slide 75 mm
Travel cross slide 120 mm
Pitch - Metric (14) 0.4 - 3,5 mm/U (14)
Pitch - Inch (12) 44 - 10 Gg/1" (12)
Tailstock seat MT 2
Tailstock - sleeve travel 70 mm
Dimensions (L x W x H) 1090 x 594 x 484 mm
Net weight 127 kg
Connection 230 V / 1 Ph ~50 Hz
Driving motor spindle 1,1 kW
Spindle taper MT 3
Tool holder seat height max. 14 mm
Centre height 125 mm
Centre width 550 mm
Turning diameter (max.) 250 mm
Bed width 135 mm
Spindle speeds 150 - 2,500 min-1
Travel top slide 75 mm
Travel cross slide 120 mm
Pitch - Metric (14) 0.4 - 3,5 mm/U (14)
Pitch - Inch (12) 44 - 10 Gg/1" (12)
Tailstock seat MT 2
Tailstock - sleeve travel 70 mm
Dimensions (L x W x H) 1090 x 594 x 484 mm
Net weight 127 kg

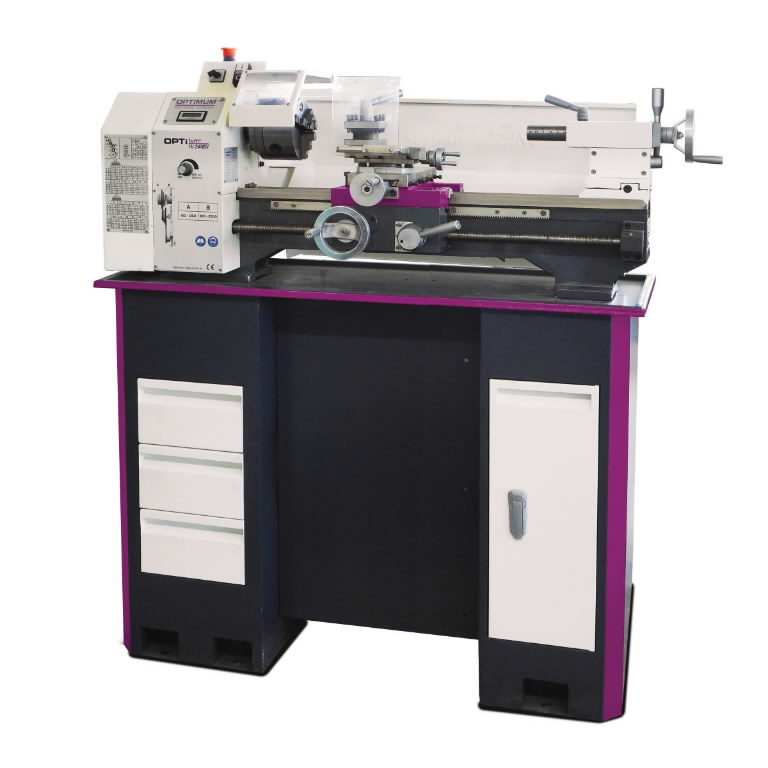

*Machine base is otional 3440409&OPTIMUM Pildid on illustreeriva tähendusega.
