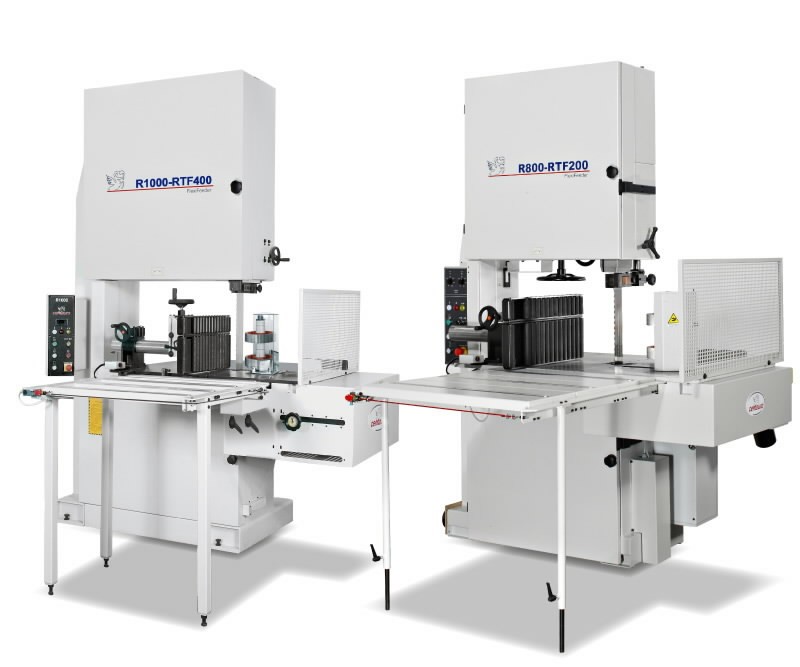

R 800 SOLID WHEELS C/W RTF 200 FEEDER
* Steel frame * Rackwork
* Motor kW 11 (HP 15) * Telescopic blade guard
* Pneumatic brake * Fixed table
* Top blade guide with wooden inserts * CHACO blade guide on the table
* Automatica star-delta starter * Dust-scrapers on the wheels
* Internal and external lubrication of the blade * Steel sawblade 5530x80x0,8 mm; pitch 16
* . * .
* RTF-200 Feeder: * Optical sensor
* 2 cast-iron feeding rollers 200 mm diameter * Tilting fence 0-45° (300 mm height) with idle rollers
* 2 variable speed (0-30 Mt/min) * Infeed idle rollers with front emergency cable
* Steel frame * Rackwork
* Motor kW 11 (HP 15) * Telescopic blade guard
* Pneumatic brake * Fixed table
* Top blade guide with wooden inserts * CHACO blade guide on the table
* Automatica star-delta starter * Dust-scrapers on the wheels
* Internal and external lubrication of the blade * Steel sawblade 5530x80x0,8 mm; pitch 16
* . * .
* RTF-200 Feeder: * Optical sensor
* 2 cast-iron feeding rollers 200 mm diameter * Tilting fence 0-45° (300 mm height) with idle rollers
* 2 variable speed (0-30 Mt/min) * Infeed idle rollers with front emergency cable
