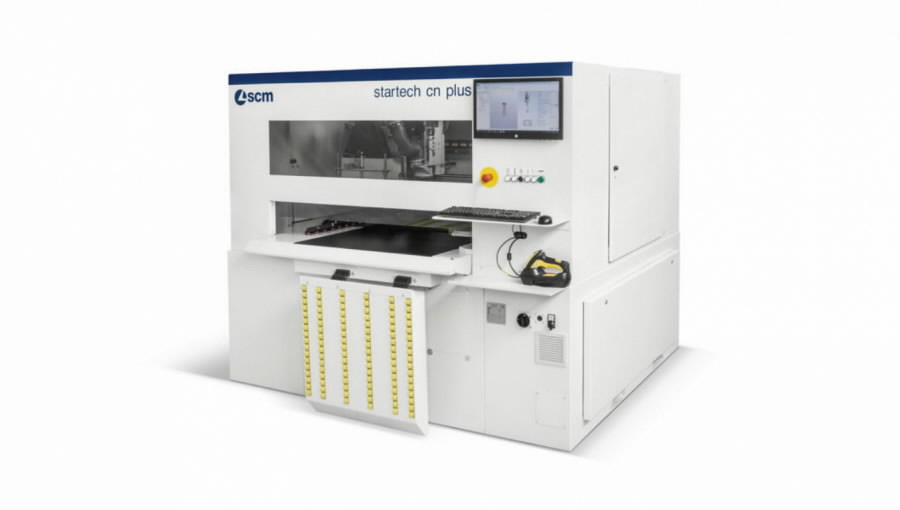

CNC keskus Startech CN Plus R, SCM

AXES
Max. panel length mm 3.050
Min. panel length mm 200
Max. panel width mm 900
Min. panel width mm 80
Max. panel thickness mm 60
Min. panel thickness mm 10
Max. X axis speed m/min 40
Max. Y axis speed m/min 40
F14L DRILLING UNIT
Vertical spindles no. 8 (5X-3Y)
Horizontal spindles no. 6 (2+2X-2Y)
Rotating spindles motor power kW (Hp) 2,2 (3)
Spindle speed rpm 4.200
Fixed integrated saw blade (direction) X
Max. diameter of blade mm 125
Disc cutter rotating speed rpm 5.500
INSTALLATION
Compressed air consumption Nl/min 50
Extraction air consumption m3/h
1900+540+1200
Exhaust air speed m/sec 30
Installed motor power kVA 15,2 (20,7 vers. R)
Exhaust outlet diameter mm 150+120+80
"TP" detecting system for calibrating of opposite panel side reference
Panel width measurement device
Device to increase the drilling pressure along Z axis
Centralised lubrication
Pc-Office
TELESOLVE teleservice via internet
CAD/CAM programs import
58.05.96 Automatic lubrication
58.05.94 Side supports for the machining of long workpieces
58.05.95 Additional hardware key for "Maestro cnc"
