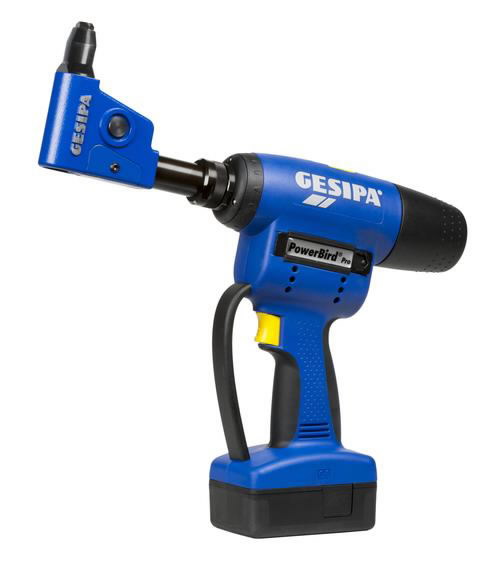

90 kraadine otsik Bird Pro-le, Gesipa

90 kraadine otsik Bird Pro-le, Gesipa

1464882&GES , C
TECHNICAL DATA
Weight: 1.1 kg
Stroke: 23 mm
Traction power: up to 20 kN

SCOPE OF DELIVERY
Nosepiece:17/45 (No. 143 4860)

SETTING TOOLS OVERVIEW
• AccuBird® Pro
No. 1435447
No. 1432365
No. 1502102 (with spring-loaded trigger system)
• PowerBird® Pro
No. 1450810
No. 1450814
No. 1502103 (with spring-loaded trigger system)
• PowerBird Pro Gold Edition
No. 1457636
No. 1457640
No. 1457638 (with spring-loaded trigger system)
• iBird® Pro
No. 1567800
No. 1567801
DESCRIPTION
Using the angle head 90° compact for PowerBird® and
AccuBird® allows to set all Types of standard blind rivets
up to 5 mm in diameter and aluminium up to 6 mm
diameter, depending on the tool Type. The minimum
edge clearance is 12 mm, the head length is 90 mm.
The angle head can be freely fixed in any position
aroand the AccuBird® and PowerBird®
tensile axis (360° free rotation).

APPLICATION
The angle head 90° is designed for use in very
narrow and confined spaces. The rugged design
makes it possible to set blind rivets with a high
setting force even in working areas that are difficult
to access.

The angle head 90° can set standard blind rivets
with a diameter up to 6.4 mm in all materials
and 8 mm in aluminium with a setting force up
to 20 kN. The smallest edge distance is 15 mm,
the head length 110 mm.

The 17/45 nosepiece is included in the
scope of delivery as standard. Nosepieces from
17/18 to 17/40 can also be used with the
angle head 90°; however, this depends on the
working range of the respective tool type
(AccuBird® Pro, PowerBird® Pro or PowerBird®
Pro Gold Edition).

ADVANTAGES
• Realisation of small edge clearances (12 mm)
• High setting force in tight installation areas
(up to 10 kN)
• Large stroke (up to20 mm)
• Simple assembly
• Compact and robust design
• Simple jaws maintenance
• Use of standard jaws
• Low vibration, even at high breaking
force level
Loe kogu tootekirjeldust →
1490.00 €
või 50.43 € / kuus
Hind püsikliendile? Logi sisse!
tk
Tellimisel eeldatav tarne 16.07.2021
Telli toode
