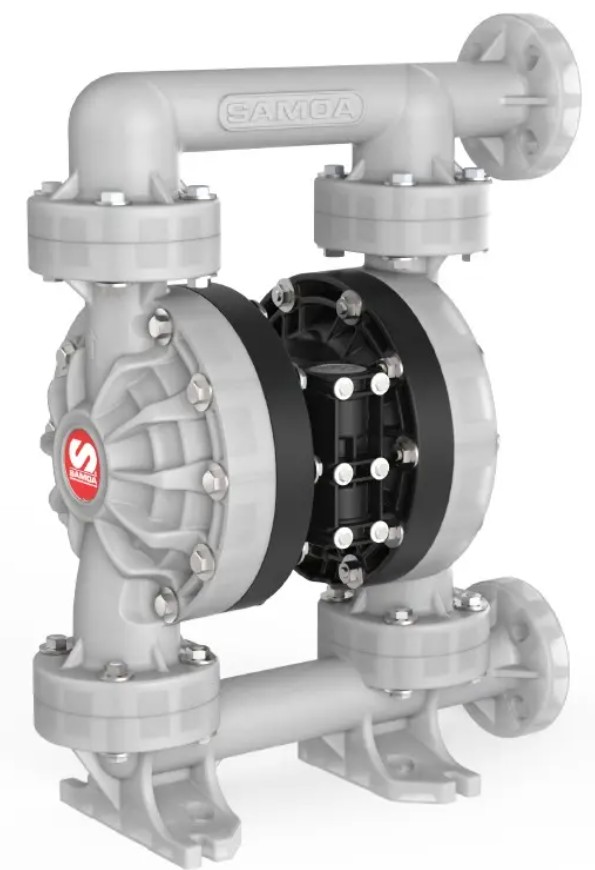

Air operated Diaphragm Pump 1 1/2" PP-PTFE-PTFE UP15P-FPS-PTZ

Diaphragm pump 1 1/2" PP-PTFE-PTFE. SAMOA diaphragm pump compressed air driven for stationary or portable use. Can run dry without damage and requires no electrical connection. Depending on the material selected, handles both clean, dirty, corrosive and abrasive liquids. Automatic start/s Technical data Part No: UP15P-FPS-PTZ Ratio: 1:1 Capacity: 475 l/min free flow Air connection: 1/2" (F) NPT Maximum air pressure: 0,8 (8) MPa (bar) Inlet: 1 1/2" Flange DIN/ANSI Outlet: 1 1/2" Flange DIN/ANSI Seals: PTFE / Teflon® Max suction height: 9 m Max particle size: 6,4 (1/4) mm (inch) Material pump body: Polypropylene Material diaphragm: PTFE / Teflon® Material balls: PTFE / Teflon® Material ball valve seats: Polypropylene Weight (Gross): 21,9 kg
