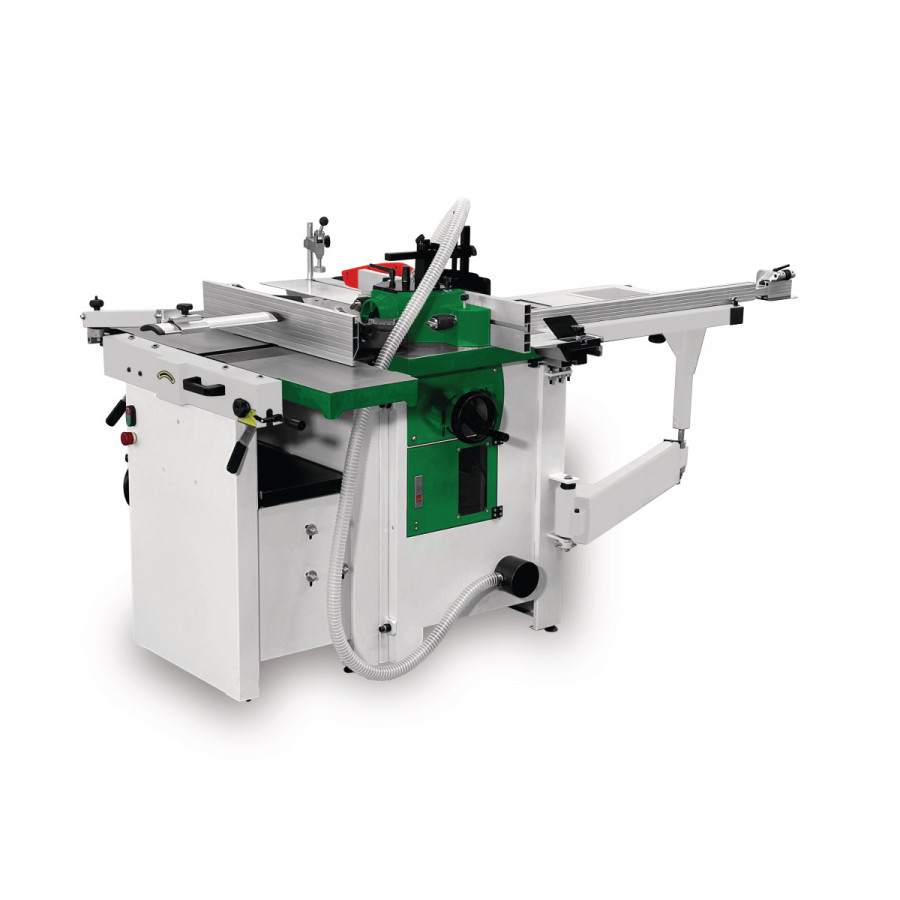

Universal multiple combination UMK 5-260 (400V)

Jointing: Infeed table width 260mm Infeed table length 1120mm Max. cutting depth of joints 4mm Thickness: Thicknessing table width 258mm Thicknessing table length 545mm Working height min. thickness 5mm Working height max. thickness 225mm Feed speed 7m/min Planing knife shaft: Planing shaft diameter70mm Number of planing blades 3pcs Planing shaft speed 5500min¯¹ Sliding carriage and table: Sliding table length 1300mm Sliding table width 238mm Table length 920mm Table width 410mm Milling spindle: Mandrel diameter 30mm Usable spindle length 105mm Spindle height adjustment 110mm Spindle speed(s) 1400/4000/6000/9000min¯¹ Milling cutter diameter max.: Max. tool diameter 160mm Circular saw unit: Saw blade angle 90 – 45° Max. cutting height at 90° 78mm Diameter of (main) saw blade 254mm (Main) saw blade speed 4000min¯¹ Electrical Data: Supply voltage 400V Mains frequency 50Hz Input power saw 2,2kW Input power planer 2,2kW Input power moulder 1,5kW
