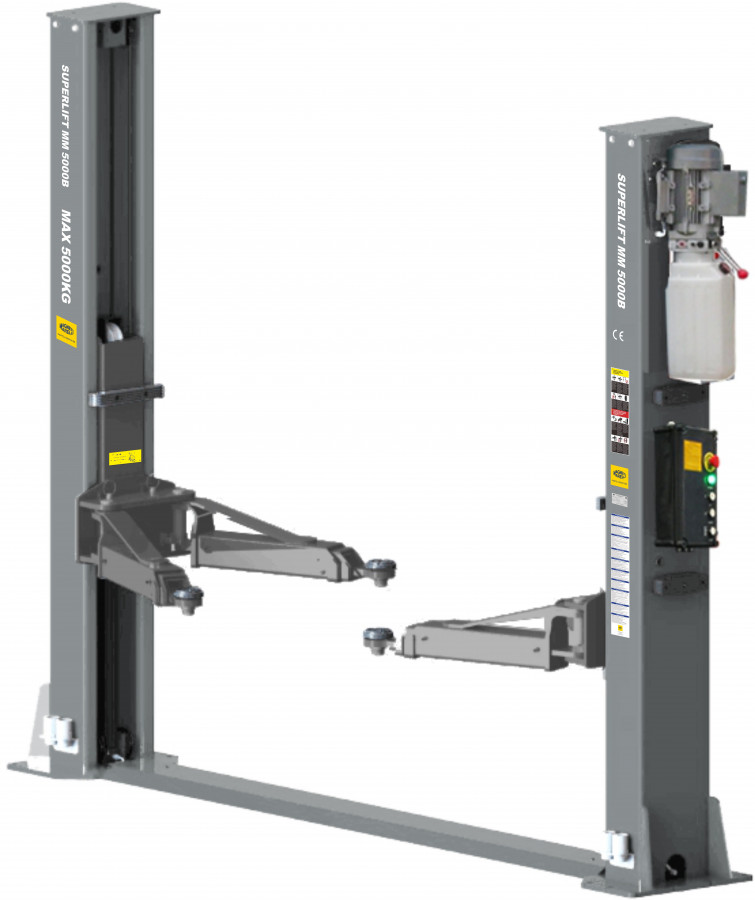

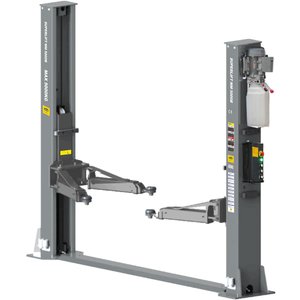

2-post lift MM Superlift 5000B

Technical data Weight 1000 kg Lifting capacity 5000 kg Lift height 1910 mm Platform initial height 110 mm Height 2850 mm Width 3620 mm Lifting time ≤ 45 s Descent time ~ 45 s Power supply 3/N/PE-380V, 50Hz,16A Power 3 kW Hydraulic oil 12 L Working temperature 5° - 40° C Working humidity 30 - 95% Noise < 70db Storage temperature -25° - 55° Foundation depth w/o floor covering 300 mm Concrete strength B25 Fuse protection 3C16 A Size of the concrete block 1,5m x 4m x 0,3m The lift should be fixed on a smooth and solid concrete ground with its strength more than 210 kg/cm², tolerance of fatness less than 5mm and minimum thickness of 300mm. In addition, newly built concrete ground must undergo more than 28 days’ cure and reinforcement.
