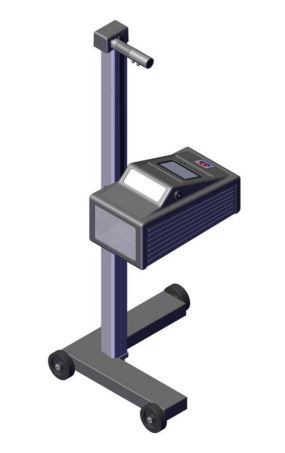

Headlight tester MLT 3000 2.0

The digital headlight alignment tester MLT 3000 2.0 serves for quick and reliable testing and adjustment of vehicle headlamps. It takes into account all legal limits and OEM specifications. Irregularities in the MLT 3000's 2.0 installation area are corrected by electronic level compensation. The 7-inch touch screen ensures an intuitive menu navigation and a clear display of the measurement values. Technical Data: Measuring range: Above hotspot0 - 800 mm/10 m (0-8%) Above pitch angle0 - 300 mm/10 m (0-3%) Underneath0 - 700 mm/10 m (0-7%) Left0 - 1000 mm/10 m (0-10%) Right0 - 1000 mm/10 m (0-10%) Light intensity0 - 125000 cd Illuminance0 - 200 lx Measurement distance100 - 500 mm Adjustment track lens centre over floor240 - 1500 mm Deviation of intensity+/-5% Deviation from an axle+/- 5' Temperature range+5 - +40°C Relative humidity20 - 80 % Power supply (mains adapter)1/N/PE 100-240 V 50/60 Hz Dimensions (H x W x D)1770 x 655 x 720 mm
