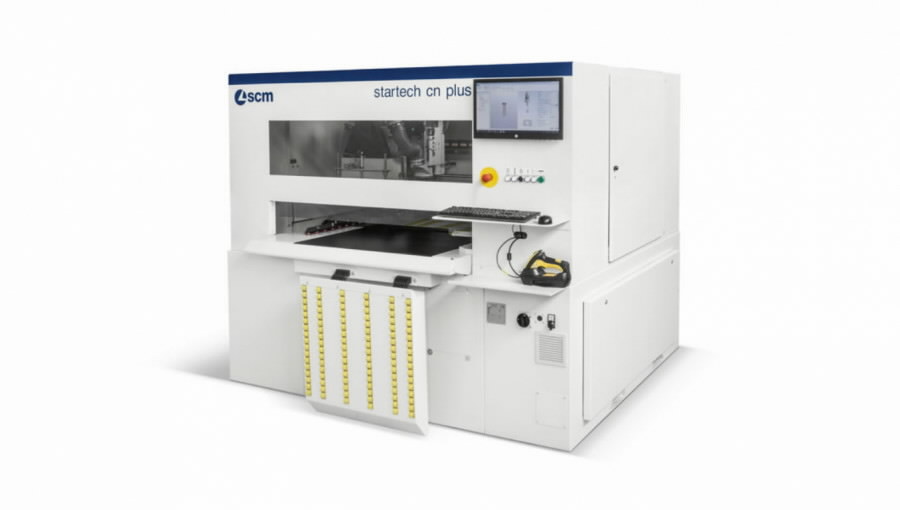

CNC keskus Startech CN Plus R

AXES Max. panel length mm 3.050 Min. panel length mm 200 Max. panel width mm 900 Min. panel width mm 80 Max. panel thickness mm 60 Min. panel thickness mm 10 Max. X axis speed m/min 40 Max. Y axis speed m/min 40 F14L DRILLING UNIT Vertical spindles no. 8 (5X-3Y) Horizontal spindles no. 6 (2+2X-2Y) Rotating spindles motor power kW (Hp) 2,2 (3) Spindle speed rpm 4.200 Fixed integrated saw blade (direction) X Max. diameter of blade mm 125 Disc cutter rotating speed rpm 5.500 INSTALLATION Compressed air consumption Nl/min 50 Extraction air consumption m3/h 1900+540+1200 Exhaust air speed m/sec 30 Installed motor power kVA 15,2 (20,7 vers. R) Exhaust outlet diameter mm 150+120+80 "TP" detecting system for calibrating of opposite panel side reference Panel width measurement device Device to increase the drilling pressure along Z axis Centralised lubrication Pc-Office TELESOLVE teleservice via internet CAD/CAM programs import 58.05.96 Automatic lubrication 58.05.94 Side supports for the machining of long workpieces 58.05.95 Additional hardware key for "Maestro cnc"
