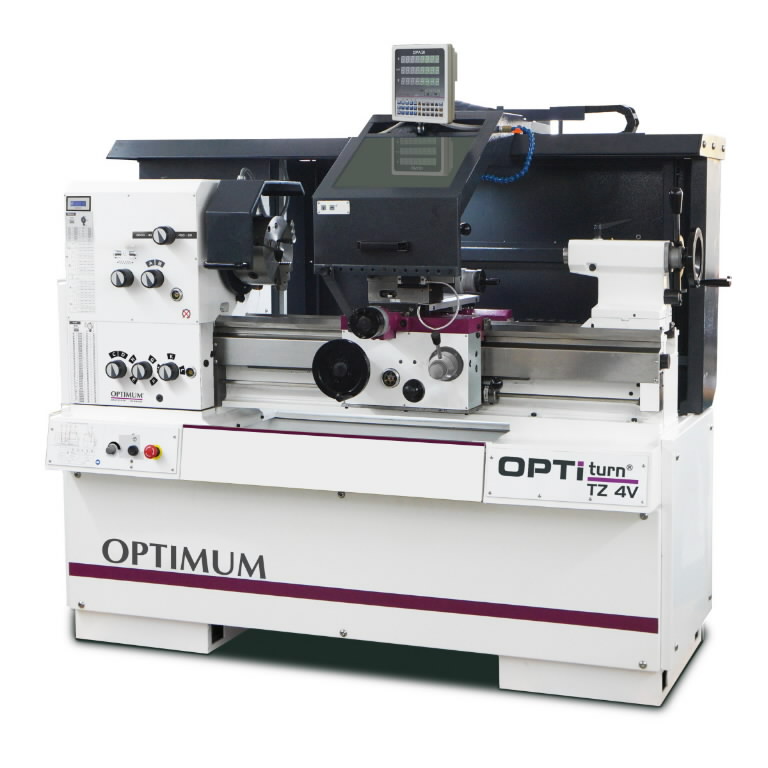

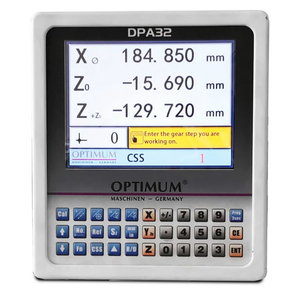

Metalli treipink OPTIturn TZ 4V DPA32

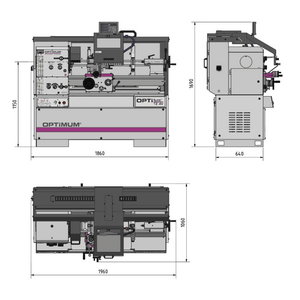

Cooling lubricant system Coolant pump output125 W Dimensions and weights Length1960 mm Width/depth1060 mm Height1690 mm Weight approx.1250 kg Electric Data Drive motor output5.5 kW Supply voltage400 V Phase(s)3 Ph Current typeAC Mains frequency50 Hz Electrical connections Total rated value5 kW Feed Longitudinal feed range0.0263 – 1.8416 mm/rev Number of longitudinal feeds48 Flat feed range0.0133 – 0.9321 mm/rev Number of flat feeds48 Motor(s) Drive motor gears2 Pitches Metric pitch0.2 – 14 mm/rev Number of metric pitches22 Imperial pitch80 - 1 Threads/1" Number of imperial pitches42 Modular thread pitch0.1 – 7 mm/rev Number of modular thread pitches44 Speed range Number of gears2 Speed range30 – 3000 min¯¹ Spindle Spindle chuckDIN ISO 702-1 No. 5 Spindle bore/rod passage diameter52 mm Spindle coneMT 6 Standards and certifications StandardDIN EN 55011 EMC levelC3 Tailstock ChuckMT 3 Quill stroke110 mm Quill diameter50 mm Travel Travel X axis112 mm Travel Z axis212 mm Work areas Max. height200 mm Max. width800 mm Swing diameter above machine bed400 mm Swing diameter above planing slide245 mm Bed width260 mm
