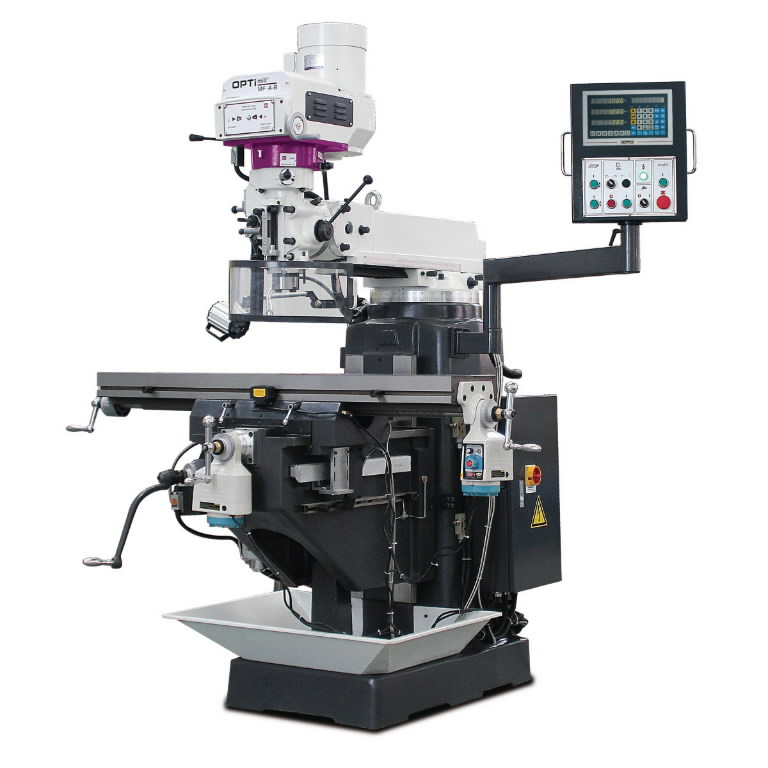

Puur- Freespink OPTImill MF 4-B

Drilling/milling output Max. size milling head76 mm Max. size shaft milling cutter25 mm Drilling performance steel (S235JR)24 mm Continuous drilling performance steel (S235JR)25 mm Electric Data Supply voltage400 V Mains frequency50 Hz Electrical connections Total rated value3 kW Milling table horizontal Table length1370 mm Table width254 mm T-groove size16 mm T-groove number3 Max. load bearing capacity300 kg Travel X axis manual820 mm Y axis manual410 mm Z axis manual400 mm X axis automatic740 mm Y axis automatic330 mm Z axis automatic320 mm Vertical spindle Reach0 – 420 mm Spindle chuckISO 40 DIN 2080 Speed range60 – 4200 min¯¹ Number of gears2 Vertical spindle speed controlmechanically stepless Vertical spindle quill diameter86mm Quill stroke127 mm Vertical spindle quill feed0.04 / 0.08 / 0.15mm/rev Vertical spindle milling head travel Y axis470mm Vertical spindle normal operation 2.2 kW
