2093,00 €
Tellimisel toode. Eeldatav tarne 26.08.2026
Järelmaks: 56,55 € kuus.
Ostes selle toote, teenid 138 boonusmutrit. Vaata lähemalt

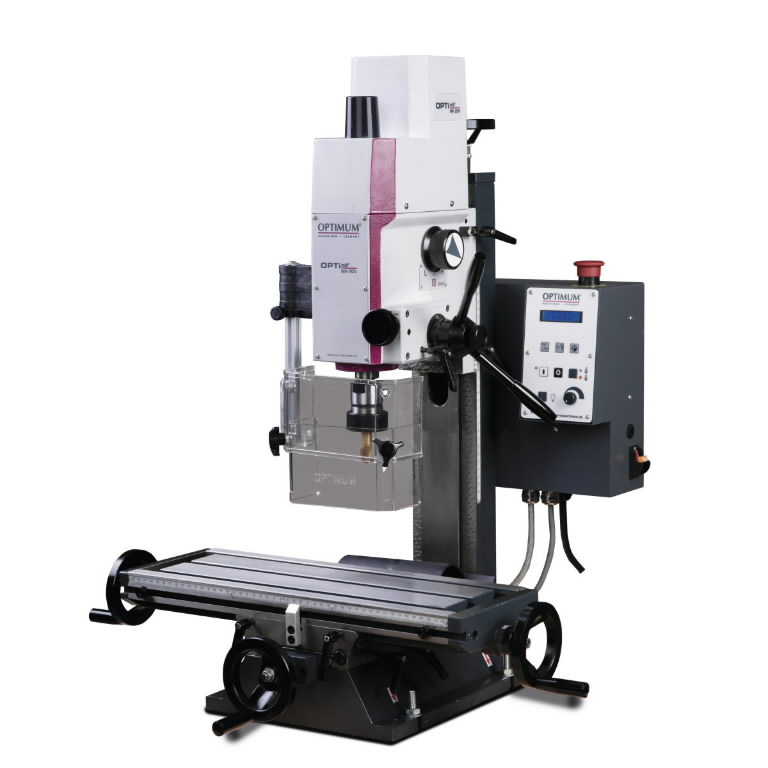

Toote andmed
Voltage 230 V
Drilling performance steel (S235JR)16mm
Max. size milling head52mm
Max. size shaft milling cutter20mm
Continuous drilling performance steel (S235JR)12mm
Horizontal milling table length510mm
Horizontal milling table width180mm
Max. clearance vertical spindle - horizontal milling table 255mm
Horizontal milling table max. load bearing capacity40kg
Travel X axis manual280mm
Travel Y axis manual175mm
Travel Z axis manual210mm
Vertical spindle reach170mm
Vertical spindle spindle chuckMT 2
Vertical spindle swivel range milling cutter head Z - X plane 60°
Vertical spindle speed range100 – 3000min¯¹
Vertical spindle quill diameter60mm
Vertical spindle quill stroke50mm
Vertical spindle speed controlelectronically adjustable
Verticle spindle drive motor output S6-30 % operation0.75kW
- Kaal 94 kg
- Kaal koos pakendiga 124 kg
- Mõõdud (koos pakendiga) 71 x 77 x 92 cm
- Müügiühik tk
- GTIN / EAN 4030635043147
- Tootja tootekood 3338131
