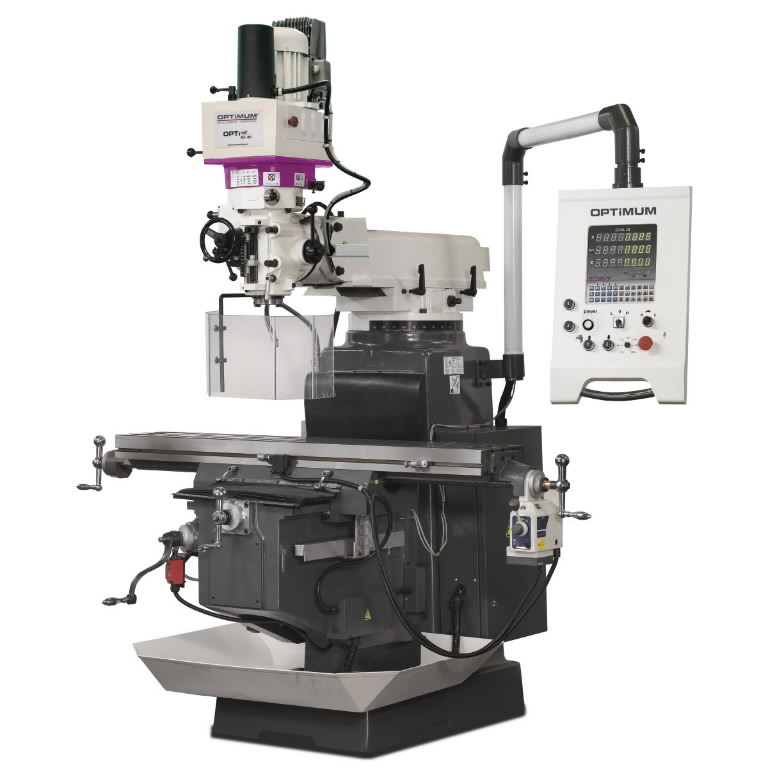

Puur- Freespink OPTImill MF 4V

Multifunctional drilling and milling machines for professional use. Electronically stepless drive with frequency converter "made in EU" and digital 3-axis position indicator DPA 21 Drilling/milling output Max. size milling head100 mm Max. size shaft milling cutter20 mm Drilling performance steel (S235JR)32 mm Continuous drilling performance steel (S235JR)28 mm Electric Data Supply voltage400 V Mains frequency50 Hz Electrical connections Total rated value4,5 kW Milling table horizontal Table length1370 mm Table width254 mm T-groove size16 mm T-groove number3 Max. load bearing capacity275 kg Travel X axis manual900 mm Y axis manual320 mm Z axis manual400 mm X axis automatic800 mm Z axis automatic365 mm Vertical spindle Reach200 – 680 mm Spindle chuckISO 40 DIN 2080 Speed range9 – 6750 min¯¹ Number of gears8 Vertical spindle speed controlelectronically adjustable Quill stroke127 mm Vertical spindle quill feed0.038 / 0.076 / 0.152mm/rev Vertical spindle normal operation 3 kW
