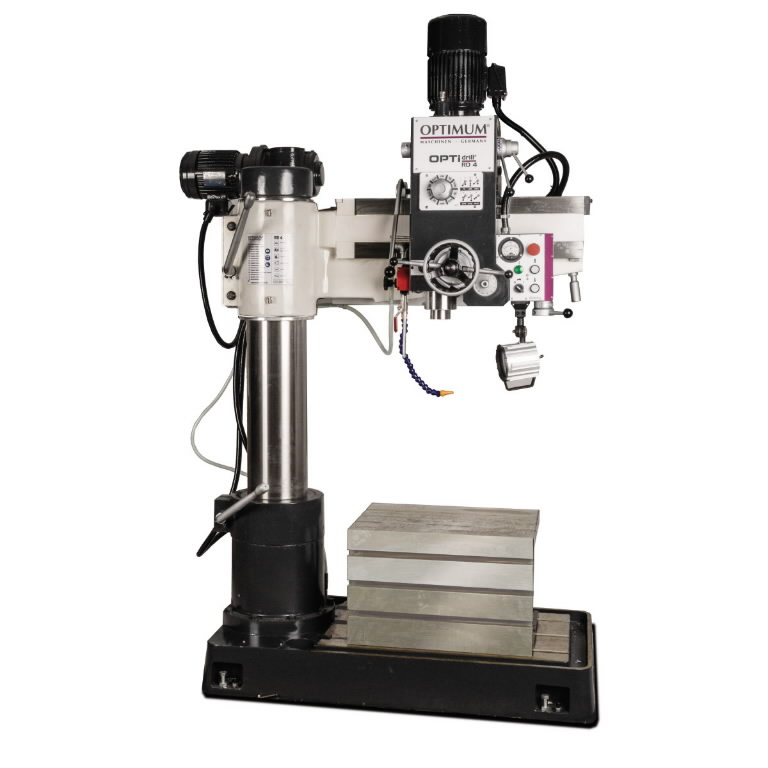

Radial drilling machine OPTIdrill RD 4

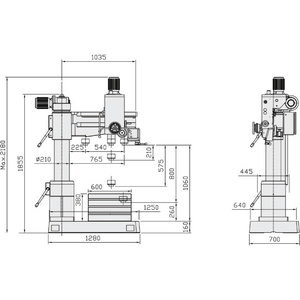

Boom Angle of rotation180 ° Dimensions and weights Column diameter210 mm Length approx.1260 mm Width/depth approx.700 mm Height approx.2180 mm Weight approx.1120 kg Drilling performance Drilling performance steel (S235JR)32 mm Continuous drilling performance steel (S235JR)28 mm Drilling table Max. distance spindle - drilling table1060 mm Clamping table length600 mm Clamping table width445 mm Clamping table height380 mm Min. distance spindle - drilling table260 mm Electric Data Total rated value3 kW Supply voltage400 V Mains frequency50 Hz Machine base Work area length828 mm Work area width522 mm Machine base T-groove size19 mm Machine base T-groove number3 Machine base T-groove spacing100 mm Length1260 mm Width700 mm Motor(s) Spindle motor drive output1.5 kW Boom lift motor drive output0.75 kW Coolant pump drive motor output90 W Speed range Speed range73 – 1247 min¯¹ Number of gears6 Spindle Quill stroke220 mm Spindle chuckMT4 Quill feed speed0.05 – 0.15 mm/rev Quill feed gears3 Travel Drilling head travel (horizontal)530 mm Boom lift stroke (vertical)580 mm Max. distance spindle - column765 mm Min. distance spindle - column225 mm
