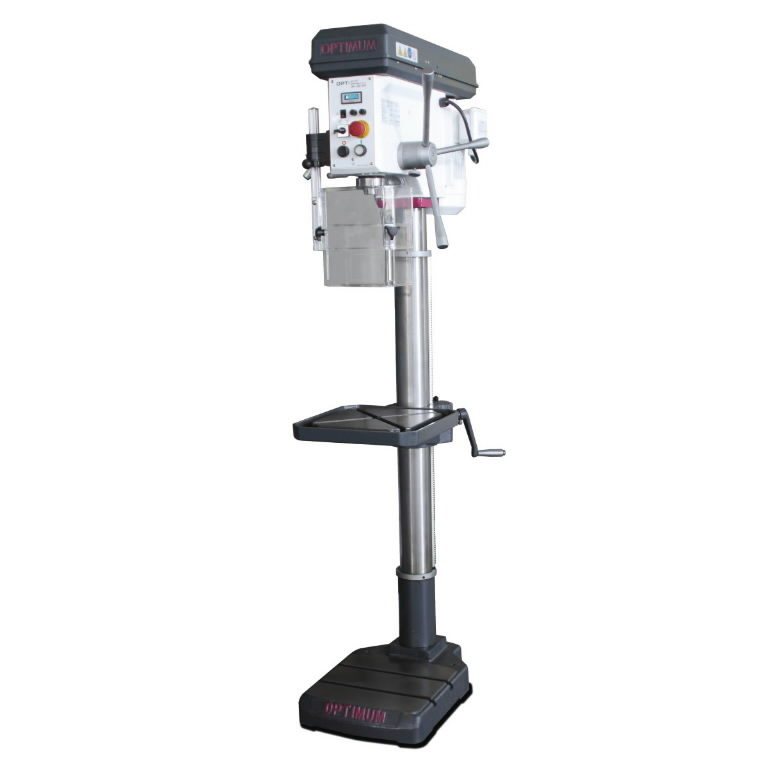

Drilling Machine OPTIdrill DH 28BV

Electrical connection 400 V / 3 Ph ~50 Hz Motor power 0,85kW/1,50kW Drilling capacity in steel (S235JR) 28 mm Continuous drilling cap. steel 24 mm Throat depth 200 mm Spindle stroke 105 mm Spindle seat MT 3 Spindle speeds 300 - 4.000 min-1 Number of steps 2 Steps, manually Drilling table size length x width 340 x 360 mm T-slot size (slot width) 14 mm Drilling table rotatable 360 degree Distance spindle - table max. 860 mm Distance spindle - stand max. 1.285 mm Stand work surface L x W 320 x 320 mm Stand slot size 14 mm Stand number of slots 2 Stand slot distance 120 mm Column diameter 92 mm Length x width x height 755 x 550 x 1.745 mm Net weight 152 kg
