Product info

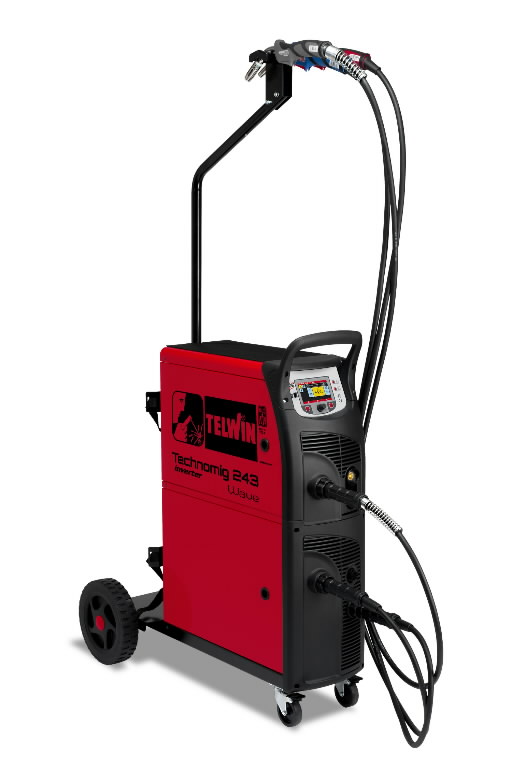

Microprocessor controlled, multiprocess MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter welding machine. It is suitable for use in car body shops and allows the immediate use of three different torches.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanksto SYNERGIC adjustment of parameters.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised metal sheet) with specific welding processes having low thermal transfer and specific processes for aluminium and brazed materials (AB Pulse).
Supplied with various customisable welding programmes, continuous and pulsed functioning,3 torches always ready for use, user-friendly interface with TFT colour screen.
Complete with 2 MT15 torches, 1 MT25 torch, cable and earth clamp.
Technical characteristics:
Input 1f/50-60Hz.
Welding current 20-220A.
Duty cycle 180A/20%.
Dimensions 870x530x1665mm and weight 59kg.
Wires: mild steel, stainless steel, aluminium, flux cored wire, brazing wire.
Wire diameter: 0,8-1,2mm (mild steel 0,6-1,0mm).
Wire spool: max 15 kg.
- Weight 59 kg
- Weight with package 60.7 kg
- Sales unit pcs
- GTIN / EAN 8004897980676
