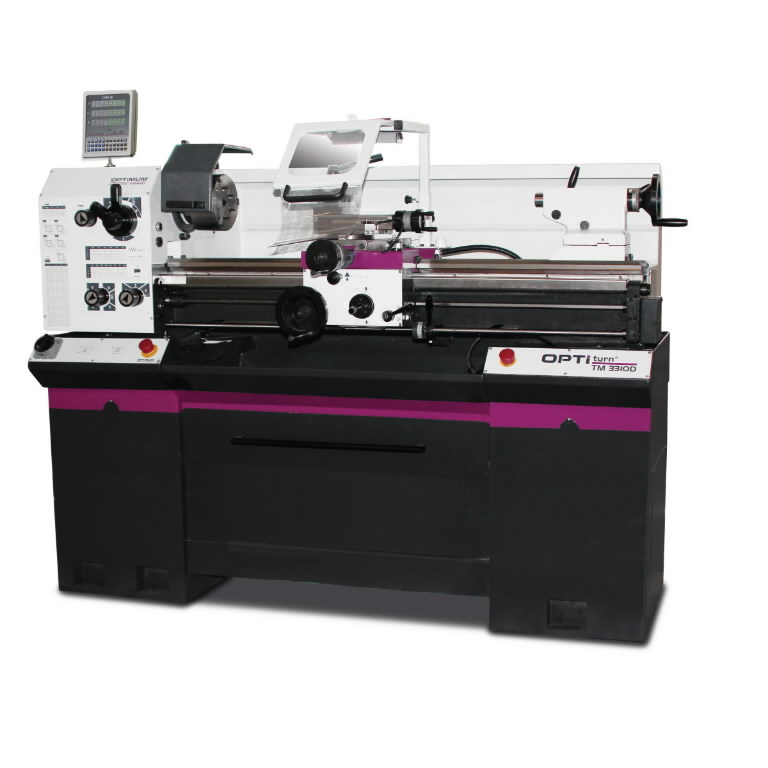

Metal lathe OPTIturn TM 3310D DPA31

with digital position display DPA 31 Connection400 V / 3 Ph ~50 Hz Driving motor spindle1.5 kW Spindle taperMT 5 Spindle seatCamlock DIN ISO 702-2 Nr. 4 Spindle hole, rod passage 38 mm Centre height165 mm Centre width1000 mm Turning Ų over lathe bed330 mm Spindle speed65 - 2,000 min-1 Number of steps9 steps Longitudinal feed in the range of0.02 - 0.4 mm/U; 24 feeds Transverse feeds in the range of0.01 - 0.2 mm/U; 32 feeds Pitch - Metric in the range of0.4 - 10 mm/U; 29 thread pitches Pitch - Inch in the range of56 - 4 Gg/in.; 34 thread pitches Tailstock seatMT 3 Tailstock- sleeve travel110 mm Dimensions (Length x Width x Height)1,814 x 740 x 1,263 mm Net weight471 kg
