Product info

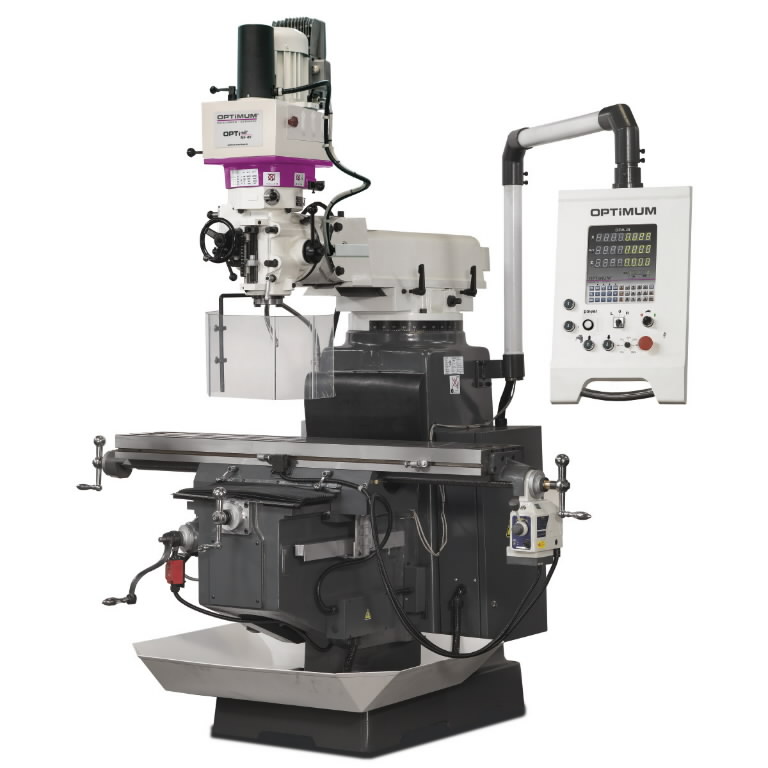

Multifunctional drilling and milling machines for professional use. Electronically stepless drive with frequency converter "made in EU" and digital 3-axis position indicator DPA 21
Drilling/milling output
Max. size milling head100 mm
Max. size shaft milling cutter20 mm
Drilling performance steel (S235JR)32 mm
Continuous drilling performance steel (S235JR)28 mm
Electric Data
Supply voltage400 V
Mains frequency50 Hz
Electrical connections
Total rated value4,5 kW
Milling table horizontal
Table length1370 mm
Table width254 mm
T-groove size16 mm
T-groove number3
Max. load bearing capacity275 kg
Travel
X axis manual900 mm
Y axis manual320 mm
Z axis manual400 mm
X axis automatic800 mm
Z axis automatic365 mm
Vertical spindle
Reach200 – 680 mm
Spindle chuckISO 40 DIN 2080
Speed range9 – 6750 min¯¹
Number of gears8
Vertical spindle speed controlelectronically adjustable
Quill stroke127 mm
Vertical spindle quill feed0.038 / 0.076 / 0.152mm/rev
Vertical spindle normal operation 3 kW
- Weight 1150 kg
- Weight with package 1150 kg
- Dimensions (with package) 180 x 165 x 198 cm
- Sales unit pcs
- GTIN / EAN 4030635033070
- Manufacturer part number 3336050
