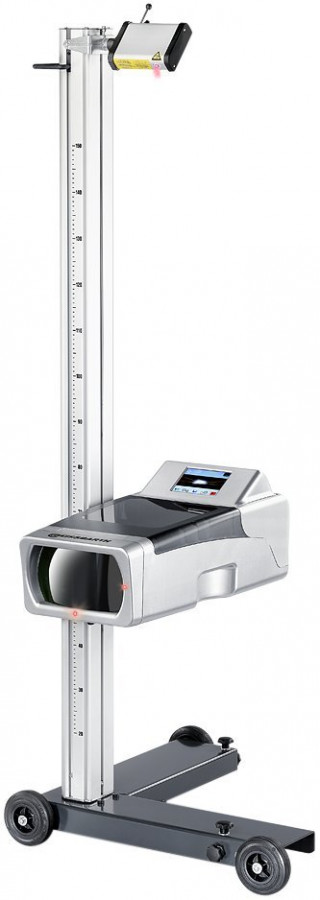

Headlight tester MLD 815

Digital headlight testing device MLD 815 without inclinometer. Cross- and alignment laser for precise positioning For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen) and glare-free high-beam systems (Dynamic Light Assist - DLA, Matrix, ILS Ford) All types of vehicles (passenger cars, trucks, motorcycles) All types of headlights (main headlights, fog lamps, auxiliary lamps) CMOS camera for real-time digital image processing Built-in printer Measurement results in real time Comparison between measured and limit values and unambiguous red/green evaluation Precise definition of the cut-off line without disrupting blue fringe Digital LCD colour display (5.7") with 262,000 colours Touch-screen function (operation with gloves is possible) Weight 46 kg Operating temperature 5 - 45 °C Electrical connection 100 - 240 V | 50 - 60 Hz Battery voltage (DC) 12 V Height of light center 250 - 1500 mm Measuring range lowest stand/highest stand 600 - -600 mm Light intensity 0 - 150000 cd Illumination (1m) 0 - 150000 / (25m) 0 - 240 lx Storage temperature -25 - 45 °C Version - Digital Packaging length 1810 mm Packaging width 660 mm Packaging height 500 mm Gross weight 66 kg Measuring range low beam left/right 1000 - -1000 mm Measuring range high beam left/right 1000 - -1000 mm Relative humidity storage 20 - 80 % Relative humidity, use 30 - 60 % Radiant power alignment laser 5 mW Operating voltage alignment laser 3 - 5 V (DC) Laser class alignment laser 2 Projection alignment laser 130° x 0,4 mrad Laser diode alignment laser 635 nm Laser class cross laser 2 Projection cross laser 90° x 0,4 mrad Laser diode cross laser 635 nm Radiant power cross laser 5 mW Operating voltage cross laser 3 - 5 V (DC) Integrated inclinometer No
