Installation Carrier- TRANSMOBIL TM-150-D-A-XL

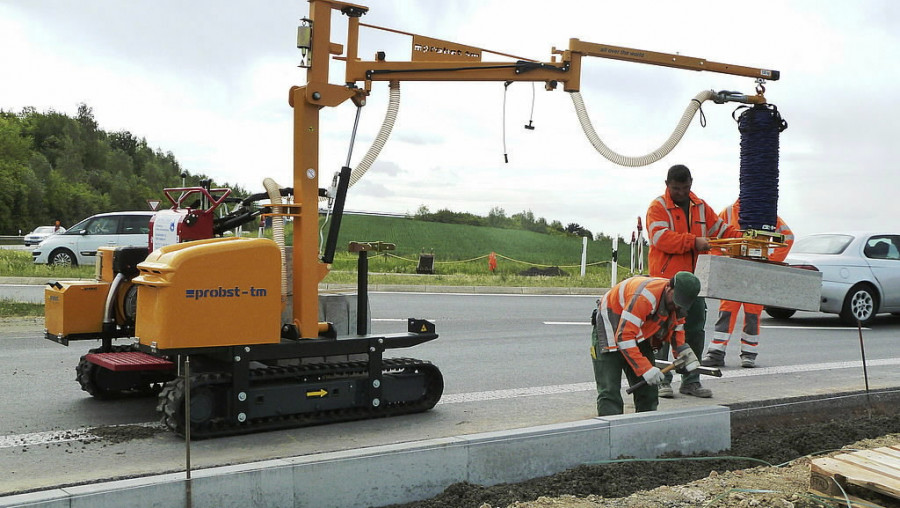

A compact universal machine - transport and handling of palletized building material and vacuum installation all in one. The powerful vacuum laying unit allows the immediate installation of heavy construction elements - effortless and without physical strain. Standart Specifications: - Robust vacuum lifting unit 150 kg capacity HE-150 and Operating valve unit BE-Sprint-2, can be taken off the unit by quick release connections, for example during the night (protction agains vandalism). - The mast of the vacuum laying unit can be adjusted exactely vertically to allow positioning of the lifting unit light as a feather alongsid the perfectly horizontal jib. Adjustment approx. +/- 5 degree sideways; +/- 10 degree in driving direction. - Compact transportation measurements. The jib is lowered down without manual power with a hydraulic cylinder. - Quick and simpel locking of both knuckle boom links by operating just one lever. - Hour meter and ignition switch (safeguard in regard of insurance). - Large open box for tools and accessories. - The lifting unit is equipped with 2 fork tines. Working length 1,090 mm (43”), horizontally adjustable. Lifting height of the lifting unit 340 mm (131/2”), lifting capacity 1,500 kg (3,300 Ibs). - For maximum pallet-width of 1,300 mm (51”). - Robust, powerful rubber crawler track - thus the TRANSMOBIL TM maneuvers well and unfailing even on rough terrain. Travel speed approx. 2,2 km/h. - Dimensions: Overall width 1,910 mm (75”). Total height in transporting position 2,280 mm (90”). Total length in transporting position 2,300 mm (91”). - Driven by powerful vacuum turbine, also lifts porous materials. Technical Data: Engine: 9,6 kW Diesel Engine Reach: 3,000 mm Lifting Capacity of Vacuum: 150 kg Payload: 1,500 kg Dead Weight: 1,540 kg
