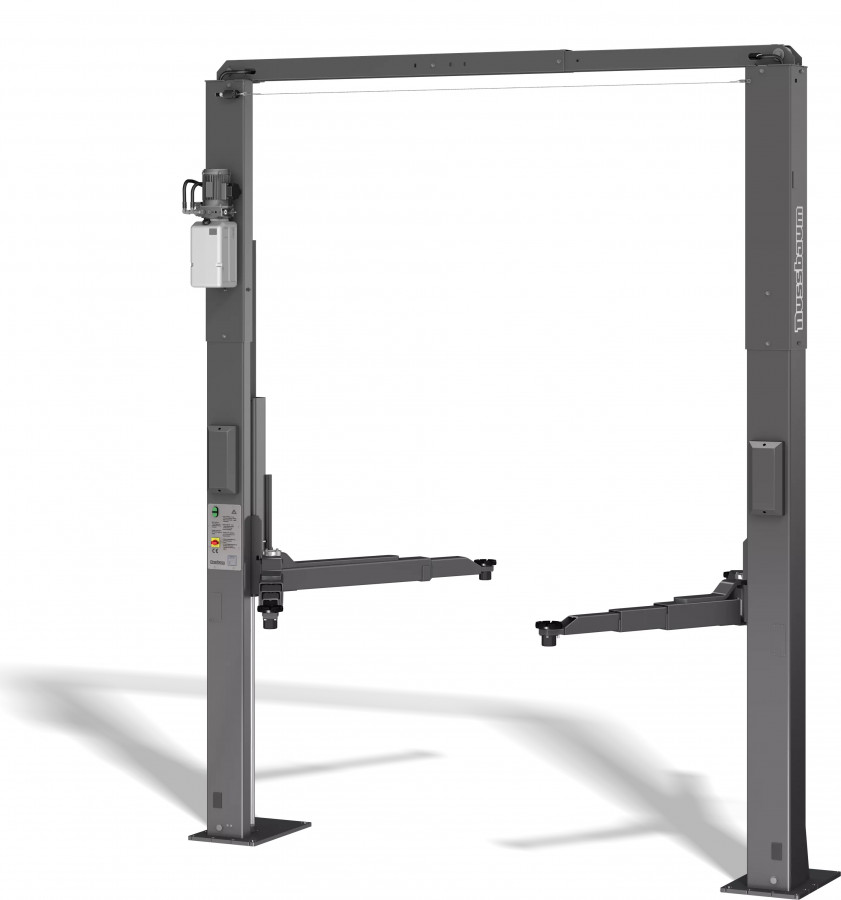

2-post lift POWER LIFT 2.46 SLH ADVANCED GH2, RAL7016
Product code: SLH246.1001014D-7016&NBFactory order. Ask for delivery time
Product info
Technical data SLH 4600 A UNI
Lifting capacity (kg) 4600
Lifting height (mm) 1992
Lifting time approx. (sec) 33
Lowering time approx. (sec) 28
Lowest lifting point (mm) 117-192
Long arms extraction (mm) 1156-1807
Short arms extraction (mm) 577-1157
Drive through width (mm) 2534
Distance between columns (mm) 2776
Total width (mm) 3370
Total height (mm) 4600 GH2
Motor capacity (kW) 2,2
Electrical connection (V/ Hz) 400/50
Required ceiling height (mm) 4760 GH2
Data sheet no. 9163
- Weight 840 kg
- Weight with package 840 kg
- Dimensions (with package) 69 x 305 x 76 cm
- Sales unit pcs
- GTIN / EAN SLH246.1001014D
- Manufacturer part number SLH246.1001014D-7016
