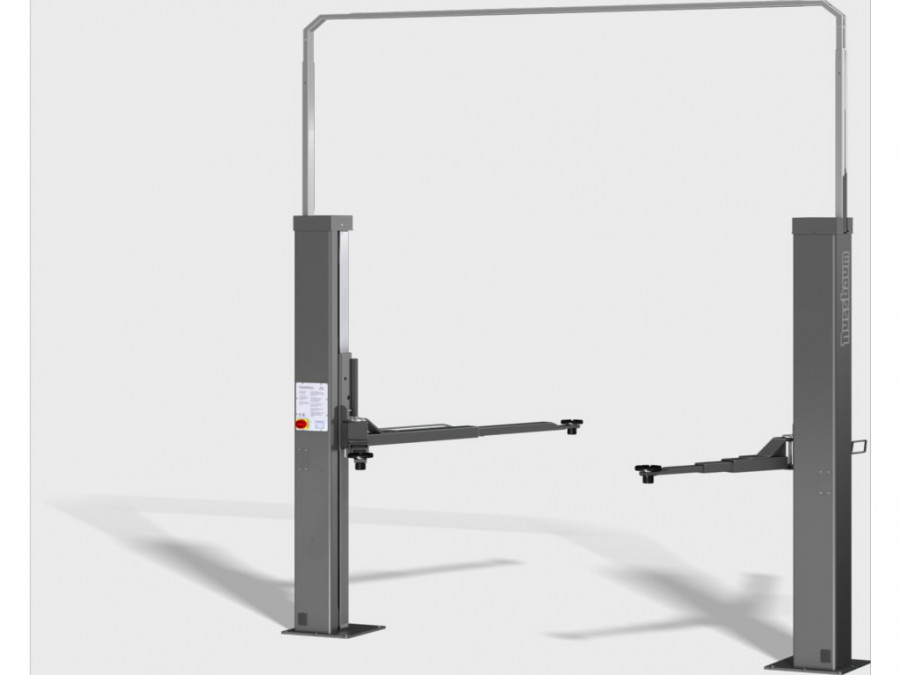

2-post lift 2.30 SL DT, el.synchr, E-set RAL7016

Technical specifications: Color grey Capacity 3000kg Lifting height 2010mm Lifting time 40s Lowering time 40s Lowest lifting point 95-140mm Long arm extraction 940-1495mm Short arm extraction 480-870mm Drive through width 2350mm Distance between columns 2560mm Total width 3100mm Total height of the column 2890mm Adjustable top connection 3720-4120mm Motor capacity 2x 1,5kW Power 400V/50Hz Electromechanical 2-post-lift with simple cable top connection. No base frame. Asymmetric lifting arms, asymmetric carriages – free access to the car doors. Short lifting arm 180° swivelling. Control panel integrated in the column with LED display. Electronical synchronisation. Electromechanical with 2 motors and 2 rolled screws. Low wear Nylatron-nut, very quiet operation. Power transmission by multiple v-belt.
