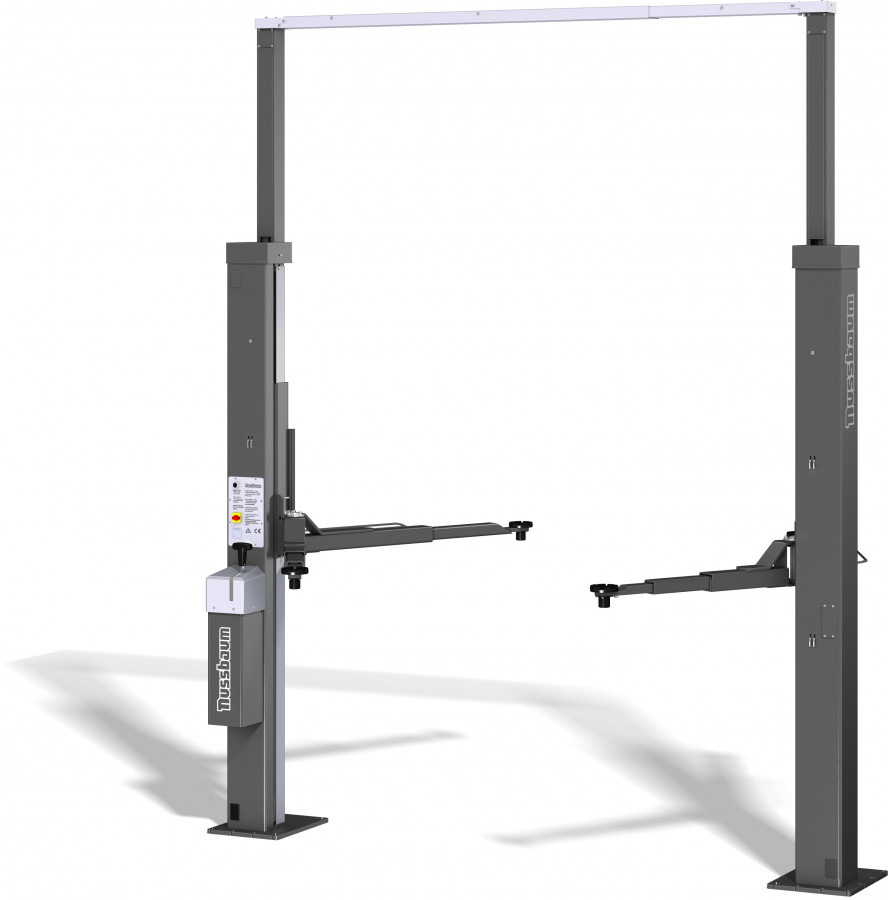

2-post lift HF 3S 3500 DT 3.5T

Technical specifications: Capacity 3500kg Lifting height 2050mm Lifting time 23s Lowering time 14s Lowest lifting point 95-140mm Long arm extraction 940-1495mm Short arm extraction 570-1160mm Drive through width 2546-2746mm Distance between columns 2546-2746mm Total width 3130-3330mm Total height of the column 4040mm Required ceiling height 4200mm Motor capacity 3kW Power 400V/50Hz Colour: Grey RAL7016 Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted load can be controlled by lowering into and lifting from the park position using the safety latches.
