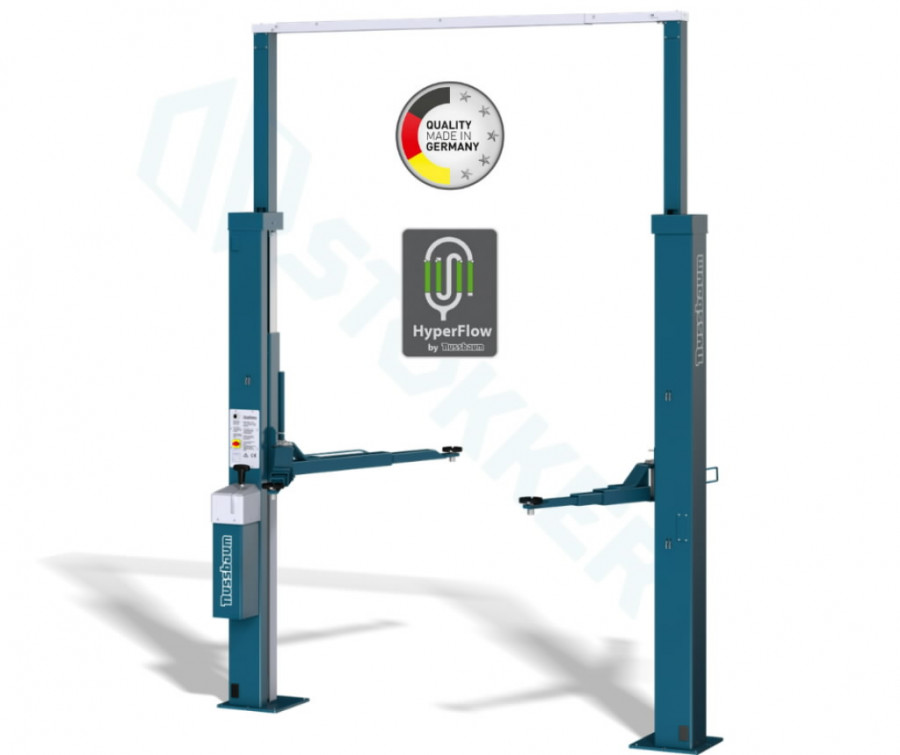

2-post lift HF 3S 3000 DT 3T

Technical specifications: Capacity 3000kg Lifting height 1995mm Lifting time 20s Lowering time 14s Lowest lifting point 95-140mm Long arm extraction 940-1495mm Short arm extraction 480-870mm Drive through width 2301mm Distance between columns 2560mm Total width 3100mm Total height of the column 4040mm Required ceiling height 4182mm Motor capacity 3kW Power 400V/50Hz Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted load can be controlled by lowering into and lifting from the park position using the safety latches.
